CADTH Horizon Scan
Photon-Counting CT: High Resolution, Less Radiation
Chantelle Lachance
Jennifer Horton
Key Messages
Why Is This an Important Area of Interest?
CT scanners play an essential role as medical imaging devices for screening, diagnosis, and monitoring of various health conditions. Photon-counting CT (PCCT) is an emerging medical technology that can improve image quality with less radiation exposure.
Although Health Canada has licensed certain PCCT scanners for use, it remains unclear whether PCCT currently has a place in care.
What Is the Technology?
PCCT uses a semiconductor material to directly convert each incident photon into an electrical signal. The detector can quickly read out and “count” each individual photon. By directly detecting each X-ray photon and its energy level, PCCT scans can provide a clearer image.
What Is the Potential Impact?
PCCT is intended to function like conventional CT (i.e., scanning various anatomical structures for the purpose of screening, diagnosing, and monitoring health conditions). Any person requiring a CT scan could potentially be eligible for a PCCT scan.
PCCT requires less time to complete a scan versus a conventional system. This could increase the number of CT scans a health care organization can conduct per day, if there are resources available to operationalize the additional capacity (e.g., health care personnel).
We identified evidence that suggests, with a few exceptions, PCCT can provide similar or improved image quality and reduced image noise with often reduced radiation doses compared to conventional CT. It remains unclear whether this results in improvements in key health outcomes. The increased image quality may also increase incidental findings (e.g., incidentalomas), most of which are not clinically relevant.
Compared to conventional CT, trends indicate higher or similar diagnostic confidence among clinicians and improved comfort for patients with PCCT. Trends also suggest PCCT may be valuable at improving the ability to diagnose or detect key markers of certain health conditions or diseases, especially for lung conditions.
PCCT may offer particular benefits to children, people who require frequent CT scans, and people living with overweight or obesity.
What Else Do We Need to Know?
PCCT scanners cost 3 to 5 times more than conventional CT scanners. Additional clinical trials to investigate whether the higher resolution and lower radiation doses result in downstream improvements in key health outcomes are imperative to determine if the additional cost of PCCT scanners is justified.
To comprehensively assess whether PCCT should be implemented for clinical use in Canada, additional information on certain implementation factors — such as training requirements and implications of dual-machine exposure, user perceptions, accessibility, and its overall place in care — is needed.
Purpose and Scope
This Horizon Scan aims to provide health care knowledge users with an overview of information regarding the use of photon-counting CT (PCCT) scanners for people requiring CT imaging to support decision-makers in making informed decisions about its suitability for implementation and use in Canada.
This report is not a systematic review and does not involve critical appraisal or include a detailed summary of study findings. It is not intended to provide recommendations for or against the use of the technology.
The Innovation of Photon-Counting CT Could Be a New Era for CT Imaging
CT scanners are an established tool for the diagnosis and monitoring of a wide range of health conditions as well as interventional and research use.1 CT scanners provide health care practitioners with detailed, cross-sectional views of the human body. Since their development in the 1970s, CT scanners have undergone numerous technological advancements, including improved image resolution, faster scan times, and the ability to create noncontrast images.1-3 CADTH’s Canadian Medical Imaging Inventory documents current practices and developments in the supply, distribution, technical operations, and general clinical and research use of advanced imaging equipment, including CT, across Canada.4 From currently available data, CT scanners are the most common imaging modality in Canada: Canada has 544 CT units unevenly distributed across each province and territory.4 Over the past decade, the volume of CT scans conducted increased by 47.7% (approximately 6.5 million in 2022–2023 compared with 4.4 million exams in 2012) and the CT exams per 1,000 population increased by 28.9% (162.0 in 2022–2023 compared with 125.7 in 2012).4 We are also aware that Canada’s imaging equipment is aging: a 2022–2023 survey found one-third of CT units are at least 10 years old. This signals the need to replace many CT units over the next 5 years; the Canadian Association of Radiology recommends the maximum life expectancy and clinical relevance for any imaging equipment to not exceed 15 years.4 Despite advances to CT technology, conventional CT scanners have limitations, including image artifacts that can limit diagnostic accuracy for people who have medical implants (metal objects can absorb or scatter X-rays that cause shadows or streaks on the scan).3
PCCT, an emerging imaging modality, is described as an innovative advancement in the field of medical imaging (an example of a PCCT scanner is shown in Figure 1).
Compared to conventional CT, PCCT is intended to provide a higher resolution image with a lower radiation dose and improve tissue differentiation at a greater speed with less electronic noise.2,3
PCCT scanners directly respond to the ALARA (“as low as reasonably achievable”) guiding principle of radiation safety as well as the goals of campaigns such as Choosing Wisely and Image Wisely.6-8 These campaigns emphasize the appropriate use of CT and optimizing studies to obtain the best image quality with the lowest radiation dose, especially for higher risk individuals (e.g., children are more sensitive to radiation).6,7,9,10 It is unclear, however, if PCCT addresses a specific unmet need in health care systems in Canada. PCCT needs further exploration to see if its improvements result in better diagnostic capabilities to justify its implementation and use.
How It Works

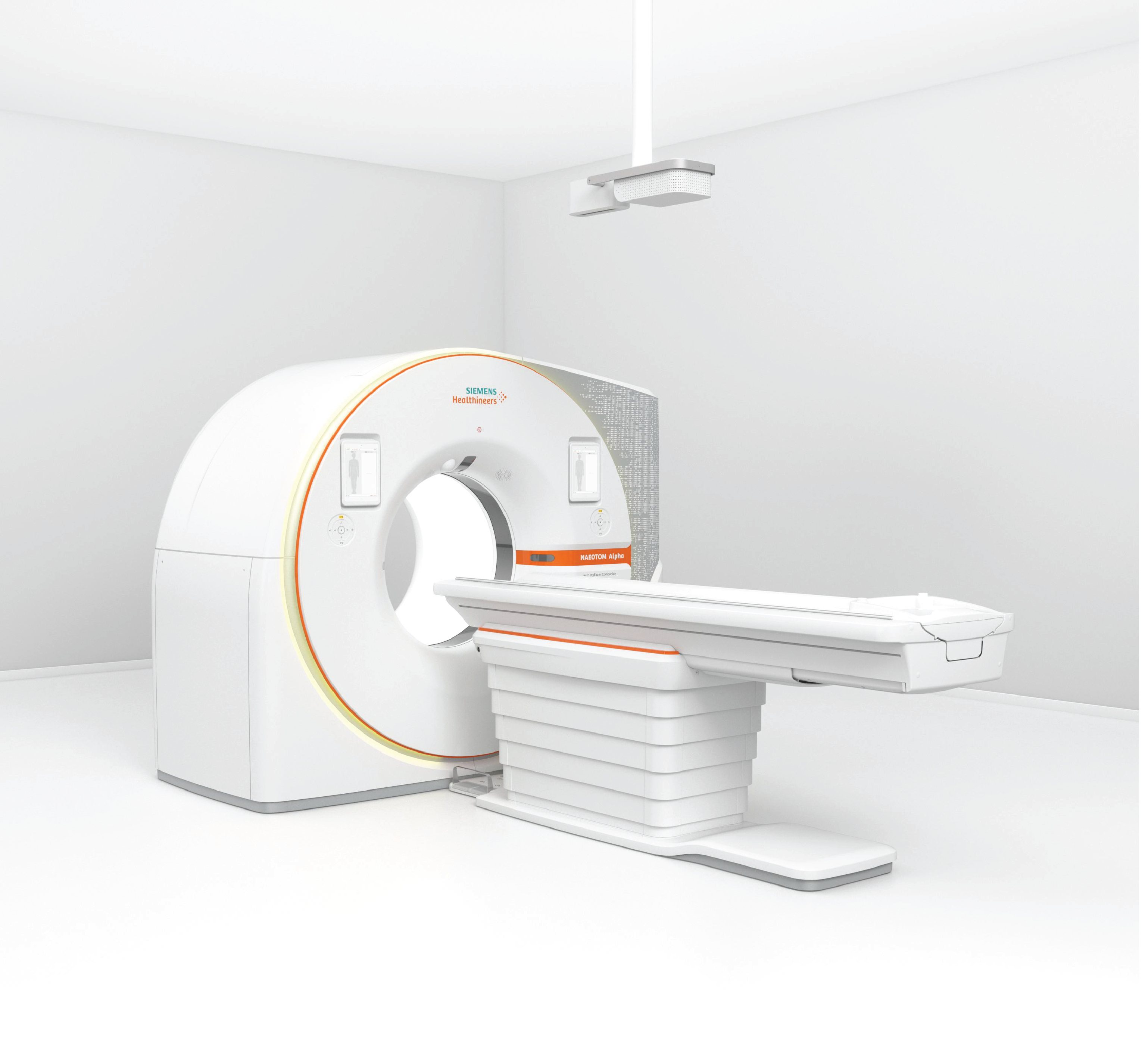

The main components of a CT scanner are an X-ray tube, a gantry (i.e., scanning unit that includes detectors), and a computer.11 Conventional CTs use energy-integrating detectors (EIDs) that rely on scintillators to convert X-ray photons to visible light, and the integrated photon energies are then recorded as electric signals.12 PCCT scanners, also referred to as spectral PCCT, use a novel approach in the way CT systems detect X-rays. PCCT uses a semiconductor material (e.g., cadmium zinc telluride,13,14 silicon15) to directly convert each incident photon into an electrical signal that can be read quickly by the detector circuity to “count” each individual photon.13 When an incident photon strikes the detector, it creates an electric charge cloud in the detector material that is directly proportional to the energy of the incident photon.12,13,16 Based on the measured energy, the counted photons are sorted into energy bins that are used to generate optimal image quality with inherent spectral information using advanced reconstruction techniques, ultimately providing more usable data (Figure 2).3,12,13 Examples of PCCT scanners are presented in Table 1.

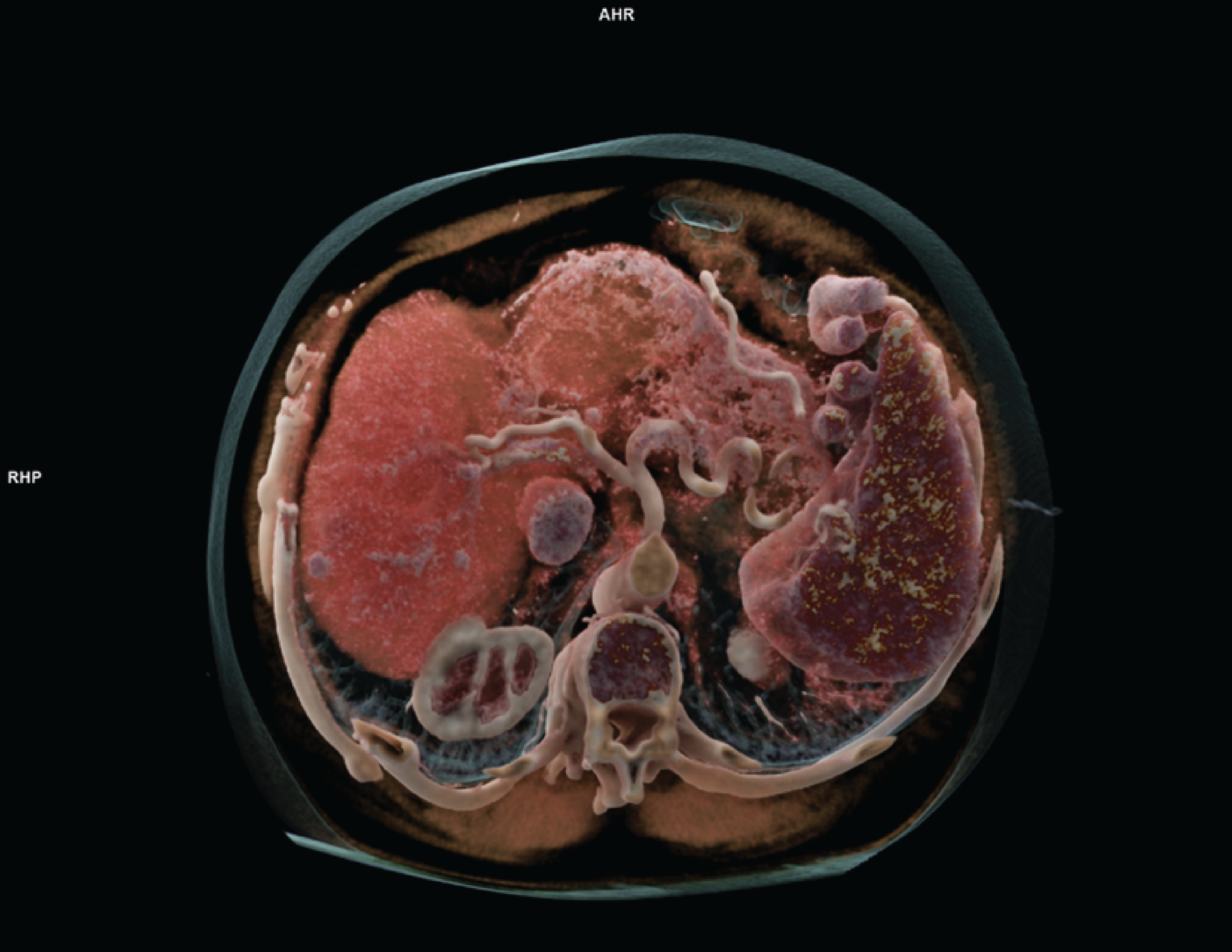

Figure 2: Cross-Sectional Output Image From the NAEOTOM Alpha Photon-Counting CT Scanner
Source: Erasmus Medical Center, Rotterdam, NL. Siemens Healthineers.
Table 1: Examples of Photon-Counting CT Scanners
Company name | Device name | Health Canada approval | Included studies | Brief description |
|---|---|---|---|---|
Canon Photon Counting Scanner | No | None; only studies using phantomsa identified. | Canon is developing a PCCT scanner in partnership with Redlen Technologies Inc.13 The detector is constructed using cadmium zinc telluride. The read out circuitry is designed to maximize the detector’s active area to achieve geometric dose efficiency.13 A clinical trial is under way (JPRN-jRCTs032220618).17 | |
Deep Silicon PCCT | No | None; only studies using phantomsa identified. | GE Healthcare describes this PCCT scanner as it may enable a significant increase in imaging performance for oncology, cardiology, neurology, and other clinical CT applications.15 This scanner uses Deep Silicon as the semiconductor material for its intended PCCT to help clinicians realize the full potential of spectral CT (e.g., purity, abundance, length, broad manufacturing). GE Healthcare calls it “Deep Silicon” because the effective depth of the detector is determined by the length of the silicon (not by the thickness), allowing the detector to have as long an absorption length, as necessary.15 Human participant research is under way.17 | |
MARS Microlab 5X120 | No | None | MARS describes this scanner as able to simultaneously measure up to 8 energy windows per bin at very high spatial resolution (50 µm to 200 µm) and with low noise.18 This technology enables identification and quantification of various components of bones, cartilage, soft tissues, and exogenously administered contrast agents and pharmaceuticals in a single scan (up to 6 different materials simultaneously). MARS described this system as directly translatable to clinical human imaging (i.e., same software, hardware, and visualization tools are used). No human participant research is under way (i.e., preclinical phase).18 | |
OmniTom Elite Photon Counting Detector | No | None; only studies using phantomsa identified. | NeuroLogica describes this scanner as the first to combine 2 key technologies: portability and photon counting.16 This scanner is designed to bring medical imaging closer to the bedside, which may help to reduce the risks with transporting people who are critically ill to the CT suite.16 | |
Whole-body spectral photon counting | No | Philips Healthcare describes their PCCT scanner as a scanner that uses spectral photon-counting detectors that are made of cadmium zinc telluride semiconductors.14 Philips’ clinical prototype is the first full-field-of-view spectral PCCT system. This prototype has been installed at Lyon University Hospital, France. Human participant research has been published and is ongoing.14 | ||
NAEOTOM Alpha | Yes | Siemens described their PCCT scanner as the first PCCT scanner.21 It has a QuantaMax detector which is intended to offer high-resolution images at minimal radiation dose, improved contrast at lower noise, and spectral information in every scan. Human participant research has been published and is ongoing.21 | ||
Siemens Healthineers53 | Somatom Count Plus | No | An investigational, single-source PCCT system. |
PCCT = photon-counting CT.
aPhantoms are objects used as stand-ins for human tissues to ensure that systems and methods for imaging the human body are operating correctly.5
Regulatory Status and Use in Canada
In April 2023, Health Canada granted approval of NAEOTOM Alpha (Siemens Healthineers, Erlangen, Germany) for clinical use in Canada.57,58 We did not identify any NAEOTOM Alpha units implemented for clinical use in Canada.
In November 2021, NAEOTOM Alpha was cleared for clinical use in the US and Europe.59 At that time, more than 20 NAEOTOM Alpha units were already installed for use.59 From published research and press release articles, we are aware that NAEOTOM Alpha PCCT units have been installed and used in, at minimum, the following countries: Australia, Austria, Belgium, Germany, Singapore, Switzerland, the UK, and the US.23,27,45,46,52,60-62
In February 2022, the OmniTom Elite (NeuroLogica Corporation, a subsidiary of Samsung Electronics, Danvers, US), a single-source PCCT scanner with a single detector, received Food and Drug Administration (FDA) 510(k) clearance for use in the US.63,64
We did not find other vendor’s PCCT scanners approved for clinical use in Canada.
Cost
The initial cost of a PCCT scanner is approximately US$5 million (NAEOTOM Alpha, Siemens Healthineers; i.e., the hardware)65,66 plus the expected yearly service and subscription (i.e., software) fees. In comparison, the cost of a conventional CT scanner ranges between US$1.0 million to US$1.5 million for 64 slices (Somatom Definition AS64, Siemens Healthineers) and US$1.7 million for 128 slices (Somatom Definition AS+, Siemens Healthineers). The cost of PCCT systems may reduce as the technology becomes more widespread.65 It is not clear what training requirements are needed for clinicians to interpret scans from this novel technology (an additional operational cost) nor the training required for maintenance and operating staff.
Who Might Benefit?
The PCCT scanner aims to function as:
a conventional scanner that can scan various body parts and tissues for the diagnosis and monitoring of a wide range of health conditions
a research tool for preclinical (e.g., studies using animals, phantoms, cadavers) and clinical studies (i.e., studies that look for treatment outcomes in humans).
Thus, if PCCT is implemented in Canada, it has the potential to affect many people requiring CT imaging. PCCT could change care if it is effective from a clinical perspective. If PCCT images provide enhanced image quality, clinicians might diagnose certain conditions with greater accuracy and confidence and observe more incidental findings (e.g., incidentalomas), thereby impacting the management plan for patients.
There are certain populations that may benefit from PCCT versus conventional CT scanners.
PCCT scanners, particularly the NAEOTOM Alpha PCCT scanner, has a higher table load capacity than conventional CT scanners; therefore, more people (i.e., those with a higher body weight that exceeded previous CT scanner limits) will be eligible for CT scans when they are required.66 For instance, the NAEOTOM Alpha PCCT scanner has a maximum capacity of 307 kg without restrictions, whereas the conventional Somatom Definition AS+ and Somatom Definition AS64 CT scanners has a maximum capacity of 227 kg without restrictions.66 Because PCCT scans may require less radiation than conventional CT scans, their use could benefit those individuals who require CT scans on a more frequent basis, especially on radiation-sensitive tissues (e.g., breasts, lungs, thyroid, and bone marrow are more vulnerable due to rapid cell division; the brain is less vulnerable because its cells do not divide as quickly).9 In addition, PCCT may benefit children who require CT procedures because they have longer life expectancies and are more sensitive to radiation.9,10
What Is the Evidence?
Clinical Studies
We identified 37 primary studies that examined the use of PCCT by human participants compared with other imaging modalities.19,20,22-56 Most studies focused on adults,19,20,22-44,47-56 2 studies included children,45,46 and 3 studies discussed adults living with overweight or obesity.31-33 The identified studies investigated CT scans of the abdomen, bone, chest, heart, and whole body. Unless otherwise reported, the clinical evidence compares the NAEOTOM Alpha PCCT scanner (intervention) to a conventional EID CT scanner (comparator). Numerous brands of EID CT scanners were used, including:
Brilliance iCT256 by Philips Healthcare
GoldSeal Discovery CT750 HD by GE Healthcare
Revolution Apex Platform by GE Healthcare
Somatom series by Siemens Healthineers, including Definition AS, Definition Edge, Definition Flash, Drive, Force, go.Top, and Sensation 64 (this series was the most common comparator).
Image Quality
One of the major draws of PCCT scanners is their ability to achieve higher spatial resolution in the resulting images.
Children
We identified 2 studies that compared the image quality of chest and heart CT scans between PCCT and EID CT scanners when imaging children.
Chest CT: In 1 study, the study authors did not find any statistically significant differences for objective or subjective image quality ratings when comparing PCCT with EID CT of the chest.46 This finding is clinically important considering the differences in radiation dose levels, as described in the radiation dose subsection.46
Heart CT: One study, which focused on children with suspected congenital heart defects, found PCCT images of the heart and thoracic aorta received higher overall image ratings by experienced clinicians compared to EID CT images.45
Adults
We identified 32 studies that compared the image quality of CT scans (i.e., abdomen, bone, chest, heart, and whole body) between PCCT and EID CT scanners when imaging adults.
Abdominal CT: Study authors reported significantly better or similar ratings for subjective and objective image quality of PCCT compared to EID CT images for abdominal scans.31,39-41,47,48
Bone CT: When assessing bone CT, image quality and visualization of osseous structures for the PCCT scans scored higher than the EID CT scans for the temporal bone (Somatom Count Plus 1 study,55 NAEOTOM Alpha 1 study),38 spine,36 hip,34 pelvis (Somatom Count Plus),54 shoulders (Somatom Count Plus),54 and wrist (Somatom Count Plus).53
Chest CT: Compared to EID CT, PCCT demonstrated similar or better image quality for chest CT scans used in the screening or monitoring of lung conditions (e.g., lung cancer screening, monitoring progression of interstitial lung disease).22,24,25,27,42-44,52 For example, 1 study found more precise imaging of interstitial lung disease features, such as visualizing more distal bronchial divisions and improved sharpness of bronchial walls.24 When comparing chest CT scans from the Somatom Count Plus PCCT scanner with a conventional EID CT scan, PCCT scans had higher scores in overall image quality (e.g., reticulation, ground glass opacity, mosaic pattern).37 Similarly, another study found PCCT (Somatom Count) increased radiologists’ ability to visualize higher order bronchi and bronchial walls without compromising nodule evaluation compared to EID CT.56
Heart CT: When conducting CT angiography of the aorta, 3 studies did not find significant differences in image quality for PCCT compared with EID CT systems.32,49,50 Two studies found image quality improved with PCCT compared to EID CT33 or invasive coronary angiography28 for CT angiography. Two studies comparing whole-body spectral photon counting CT (Philips Healthcare) with conventional EID CT found improved objective and subjective image quality with PCCT for coronary CT angiography for people with confirmed or suspected coronary artery disease.19,20
Whole-body CT: Three studies examined PCCT versus EID CT for whole-body CT scans for people with multiple myeloma. The findings from these studies differed regarding reported image quality: 2 studies reported PCCT provides higher subjective and objective image quality (e.g., edge sharpness, lesion conspicuity),35,51 whereas 1 study did not find any statistically significant differences between the PCCT and CT systems.29
Image Noise
PCCT systems are designed with the intention of reducing image noise and artifacts that have been a limitation of conventional EID CTs. Common measures of noise are signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR); an increase in these ratios suggests a cleaner and more accurate CT image. These improvements may lead to more accurate diagnoses.
Children
We identified 1 study investigating pediatric CT scans of the heart and thoracic aorta, which found PCCT provided a higher SNR and CNR (i.e., better cardiovascular imaging) than EID CT.45
Adults
We identified 22 studies that included an outcome related to image noise, such as SNR and CNR.
Abdominal CT: For all abdominal CT studies, better scores were reported for PCCT systems. Image noise outcomes (i.e., SNR40,41,47 and CNR31,39,40,48) were significantly higher for PCCT compared to conventional EID CT.
Bone CT: Study authors found PCCT had either lower image noise (hip,34 spine36) or no significant differences in image noise (Somatom Count Plus; shoulder,54 pelvis,54 wrist53) and artifacts (hip34) compared with EID CT.
Chest CT: Study authors reported variable findings for outcome related to image noise. Studies reported less noise in some cases,42,43 more noise in others,24,26,37 or no statistically significant differences44 when comparing PCCT with EID CT. Although some studies reported increased noise for PCCT systems, this did not appear to affect diagnostic quality compared to EID CT at lower radiation doses because of its improved image resolution.24,26,37
Heart CT: For all studies, the authors reported PCCT systems had better scores on image noise outcomes (i.e., studies reported significantly higher SNR49 and CNR32,33,49,50 for PCCT compared to EID CT).
Whole-body CT: For people with multiple myeloma, whole-body scans using PCCT resulted in better scores for image noise in some cases35 or there were no significant differences (i.e., CNRs and SNRs were similar)29 in image noise between modalities compared to EID CT.
Radiation Dose
Another promoted feature of PCCT scanners is their ability to operate at lower radiation doses while maintaining image quality.2,3 This is particularly beneficial for children and those requiring frequent CT scans. The following is a summary of the evidence we found about radiation and PCCT.
Children
We identified 2 studies that examined radiation dose outcomes for children. One study reported mean effective radiation doses were similar for PCCT and EID CT for CT scans of the heart and thoracic aorta.45 In the second study, PCCT significantly reduced dose levels without a significant difference in image quality of chest PCCT scans compared with EID CT scans.46
Adults
Abdominal CT: Most studies described PCCT as operating with a significantly reduced radiation dose (e.g., lower mean CT dose index and effective dose) while maintaining similar image quality to EID CT.31,39,40 However, 1 study reported significantly higher dose exposure for PCCT versus EID CT.41
Bone CT: Study authors found PCCT systems (NAEOTOM Alpha,34,36,38 Somatom Count Plus53,54) could operate at lower radiation doses compared to EID CT.
Chest CT: Compared to EID CT, study authors found PCCT systems could operate at lower radiation doses.22-26,42-44 For example, mean CT dose index was 2.0 times higher in EID CT scans of the chest compared with PCCT scans.44 In another study, PCCT afforded a reduction in contrast medium and radiation dose for the diagnosis of acute pulmonary embolism, while maintaining good to excellent image quality compared to EID CT.22
Heart CT: Study authors found PCCT (whole-body spectral photon counting CT by Philips Healthcare) could operate at lower radiation doses compared with EID CT.20
Whole-body CT: Two studies reported significantly lower radiation doses for PCCT compared to EID CT.29,35
Diagnostic Confidence
The implementation of this emerging technology can impact the level of confidence a clinician has with their diagnosis of various health conditions.
Children
No evidence identified.
Adults
We identified 7 studies that measured diagnostic confidence among clinicians when reviewing adult CT scans from a PCCT device.19,27,29,34-37 Among these, 4 studies reported that clinicians rated their diagnostic confidence significantly higher for CT scans obtained with a PCCT scanner (NAEOTOM Alpha34-36 and whole-body spectral photon counting CT by Philips Heatlhcare19) compared to a conventional EID CT scanner. These improvements were noted in various diagnostic scenarios, including whole-body CT scans for people with multiple myeloma,35 pelvis CT scans for people living with or suspected femoroacetabular impingement syndrome,34 spine CT scans for evaluating surgical outcomes after people had spinal interventions,36 and coronary CT angiography for people with coronary artery disease.19 Conversely, 3 studies did not report statistically significant differences in clinicians’ diagnostic confidence when comparing PCCT and EID CT scanners for the diagnostic interpretation of the tested lung structures (chest CT),27 interstitial pneumonia (chest CT),37 and the detection of osteolytic lesions that can be observed in people with multiple myeloma (whole-body CT).29
Clinical Outcomes
Although image quality, noise and radiation reduction, and diagnostic confidence are important outcomes, PCCT scanners should demonstrate improvements in clinical outcomes to warrant widespread adoption of PCCT scanners in Canada. We identified 10 studies that considered at least 1 health outcome.
Children
No evidence identified.
Adults
Abdominal CT: One study compared PCCT with EID CT for the detection and characterization of kidney stones in people with known kidney stones. Study authors found PCCT was not significantly different in detecting kidney stones compared to EID CT but found PCCT to be better able to characterize (i.e., uric acid or non–uric acid stones) small kidney stones,30 which can impact clinical decisions about the most appropriate treatment plan. For example, the treatment plan for patients with uric acid stones is usually less invasive and expensive (e.g., urinary alkalinization can be prescribed to dissolve uric acid stones versus interventional urinary procedures or external shock wave lithotripsy).67
Chest CT: PCCT may be valuable for detecting lung conditions. PCCT allows for spectral assessment of lung vasculature at a high scan speed, benefiting people with suspected pulmonary embolism who often experience shortness of breath.22 Compared with EID CT, another study reported PCCT conserves high diagnostic accuracy for the detection of interstitial lung disease, with a radiation dose reduction of 66%.23 Moreover, for people with interstitial lung disease, the improved visualization of CT features with PCCT led to the reclassification of type of lung disease in 4 people (i.e., from nonfibrotic to fibrotic interstitial lung disease; study included 112 patients).24 Another study found PCCT improved the ability to detect emphysema and lung nodule borders compared to EID CT.25 Coinciding with higher scores in image quality, PCCT (Somatom Count Plus) demonstrated a decreased number of indeterminate ground glass opacities, an increased number of unlikely ground glass opacities, and an increased number of likely reticulations relative to EID CT.37 PCCT offered equivalent or better diagnostic quality compared to EID at lower radiation doses, due to its improved resolution.26 However, 1 study could not demonstrate a perceived difference in diagnostic interpretation for certain lung structures and abnormalities.27
Heart CT: Compared with invasive coronary angiography, PCCT provided accurate diagnosis of coronary artery disease for people at high risk, including people with severe coronary calcification or prior stent placement.28
Whole-body CT: We identified 1 study that reported PCCT helped identify more lesions in people with multiple myeloma than EID CT.29
Other: Body Size
Children
No evidence identified.
Adults
PCCT scanners, such as NAEOTOM Alpha, have a higher table load capacity than conventional CT scanners. This may enable more people (i.e., those with a higher body weight that exceeded previous limits) to be eligible for CT scans when they are required. It is also important to determine if body size has an impact on relevant outcomes when comparing PCCT with EID CT.
We found 3 studies that investigated how PCCT impacts people living with overweight or obesity. One study compared PCCT to EID CT for people living with overweight, based on body mass index as the marker, and determined PCCT can provide similar or improved image quality with abdominal CT with less radiation.31 Compared to EID CT, coronary artery CNR values from PCCT were significantly higher (i.e., better), with greater differences for people living with obesity.33 This study suggests that PCCT may provide better visualization of the coronary arteries, especially for people living with obesity.33 Similarly, the third study found the CNR gain of PCCT increased in people living with overweight.32
Patient Perspectives and Experiences
Acknowledging that patient perspectives and experiences are important to explore for any emerging technology, 1 study evaluated patient comfort during PCCT scans.68 This study evaluated the comfort of adults undergoing a chest and/or abdomen CT scan using a PCCT device (NAEOTOM Alpha). Compared to conventional CT, patients rated PCCT significantly better for the speed and comfort of the CT table and the ease of holding their breath during the scan. No statistically significant differences were found for all other outcomes, such as claustrophobia, the effort to lie down and to get up from the CT table, and communication during the examination.68
Additional Considerations
Implementation and Uptake
If senior health care decision-makers determine that PCCT is appropriate for implementation in Canada, there will be certain factors that they will need to consider. For example:
Cost: The cost is a substantial factor that may prevent the widespread use of the technology. PCCT scanners are 3 to 5 times more expensive than conventional CT scanners.65,66 This does not consider the training requirements that may also be needed for clinicians as well as operating and maintenance staff. This difference in cost may narrow over time as more health care organizations implement this emerging technology. A senior health care decision-maker may perceive it to be more valuable to have 3 EID CTs instead of 1 PCCT to conduct more CT scans per day. However, this does not factor in other important considerations, such as additional infrastructure required (e.g., staff, power consumption for multiple units, physical space). Another consideration may be whether other tools (e.g., clinical decision support tools; artificial intelligence, such as reconstruction algorithms and software) may be more cost-effective than implementing PCCT.
Substitutive versus additive intervention: Will the PCCT system replace an older system (e.g., EID CT, MRI) or will it be an additional CT system within the health care organization? This will help clarify what additional resources may be needed (e.g., staff, computing power, storage, physical space).60 Either option can have health system implications: PCCT devices may increase the number of CT scans a health care organization can conduct per day if PCCT scanners require less time to complete a scan versus a conventional system.60
Essential versus discretionary intervention: Senior health care decision-makers may want to consider if the existing CT technology is effective enough at making clinical decisions. This factor should lean on the available and upcoming clinical evidence along with other important considerations such as cost and perceptions from patients and clinicians who have used PCCT.
Jurisdictional Interest
We asked jurisdictional representatives from all provinces and territories regarding whether they are considering purchasing PCCT. We received responses from 6 provinces:
1 province is considering the purchase of PCCT scanner(s) within 1 to 2 years
2 provinces are considering the purchase of PCCT scanner(s) within 2 to 5 years
2 provinces are not considering the purchase of PCCT scanner(s) within the next 5 years
1 province mentioned it is not known if there is interest in the purchase of PCCT scanner(s) at the facility level.
Responses from these jurisdictions further emphasized the cost of PCCT as prohibitive to purchase.
Provider Training
The training requirements for health care staff to conduct and interpret scans from this novel technology are unclear. One PCCT manufacturer claims that the workflow is “nearly identical for hospital staff”14 but they do not provide specific details regarding the differences. It is unclear whether radiologists will have challenges when reviewing CT from 2 distinct types of scanners (i.e., PCCT and EID) if both are used at their health care organization. It will be important to understand the potential implications of clinicians being exposed to 2 unique CT scanners, and whether this may reduce their diagnostic accuracy when interpreting CT scans from EIDs with lower image quality.
Accessibility
For the PCCT scanners with approval for clinical use, they have primarily been installed in densely populated areas within an academic centre. If health systems in Canada decide to implement PCCT scanners for research and/or clinical use, it is likely they will be installed in these same types of areas (e.g., urban, academic centres versus rural, community centres), potentially leading to unequal access for people living in Canada.
Future Developments
The body of evidence will continue to expand as more people undergo CT scans using PCCT and as additional brands of PCCT scans are cleared for use in clinical settings. As of September 2023, we identified 15 ongoing clinical trials investigating PCCT with human participants, with a limited number of ongoing randomized studies (refer to Table 2). These studies are continuing to assess the diagnostic accuracy, clinical benefits, and clinical harms of PCCT for different populations (e.g., people with lived experience or suspected cardiovascular disease, arthritis, cancer [head and neck, lung, breast], bone fractures). In addition, we identified 4 systematic review protocols that are registered in PROSPERO that will further our understanding of PCCT.69-72
Final Remarks
PCCT scanners represent an emerging health technology that advances the field of medical imaging, although there are some important caveats. PCCT scanners cost 3 to 5 times more than conventional CT scanners and this additional cost must be justified by improved clinical benefits or reduced clinical harms. We identified trends indicating that PCCT may hold value in diagnosing health conditions in specific areas, such as respiratory medicine. Additional clinical research is needed to fill in the evidence gaps and determine the clinical implications of PCCT across various health care domains. For example, more research is needed that focuses on pediatric populations, considering their increased sensitivity to radiation exposure. Ongoing comparative studies will continue to provide new information about this emerging technology, covering areas not detailed in this report (e.g., people with lived experience with or suspected atherosclerosis, diabetes, stroke, adrenal gland lesions, and breast cancer). Notwithstanding clinical benefits, there is a need for a greater understanding of the factors affecting implementation, such as training requirements, user perceptions, accessibility, and its overall place in care. Moreover, the cost of PCCT is an important barrier to implementing PCCT, further emphasized by jurisdictional representatives, which may limit access and widespread adoption of this technology. Thus, the results from future and ongoing clinical trials is imperative to determine if the additional cost of PCCT scanners is justified. Further understanding of these factors will aid senior health care decision-makers to make informed decisions regarding its use in Canada.
